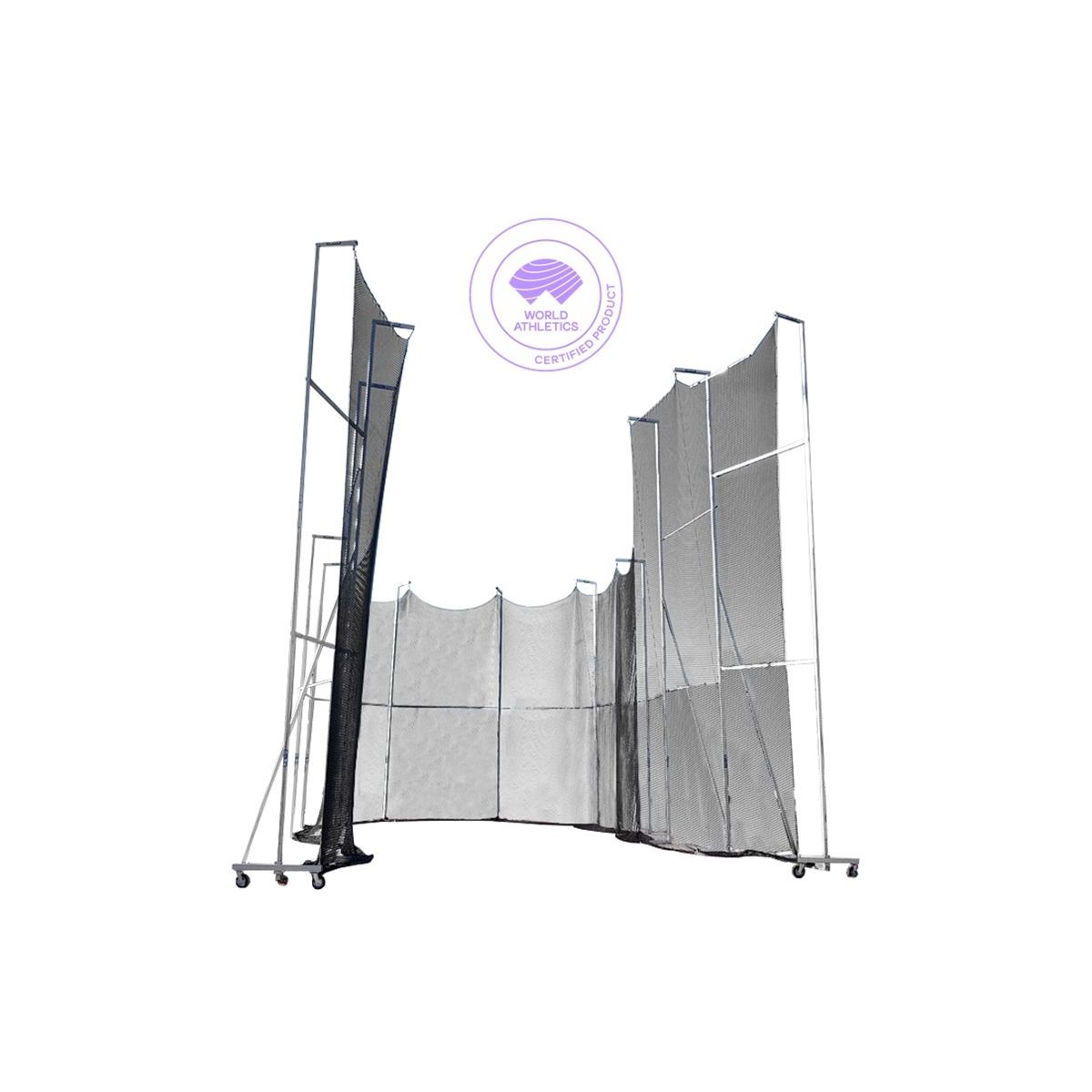

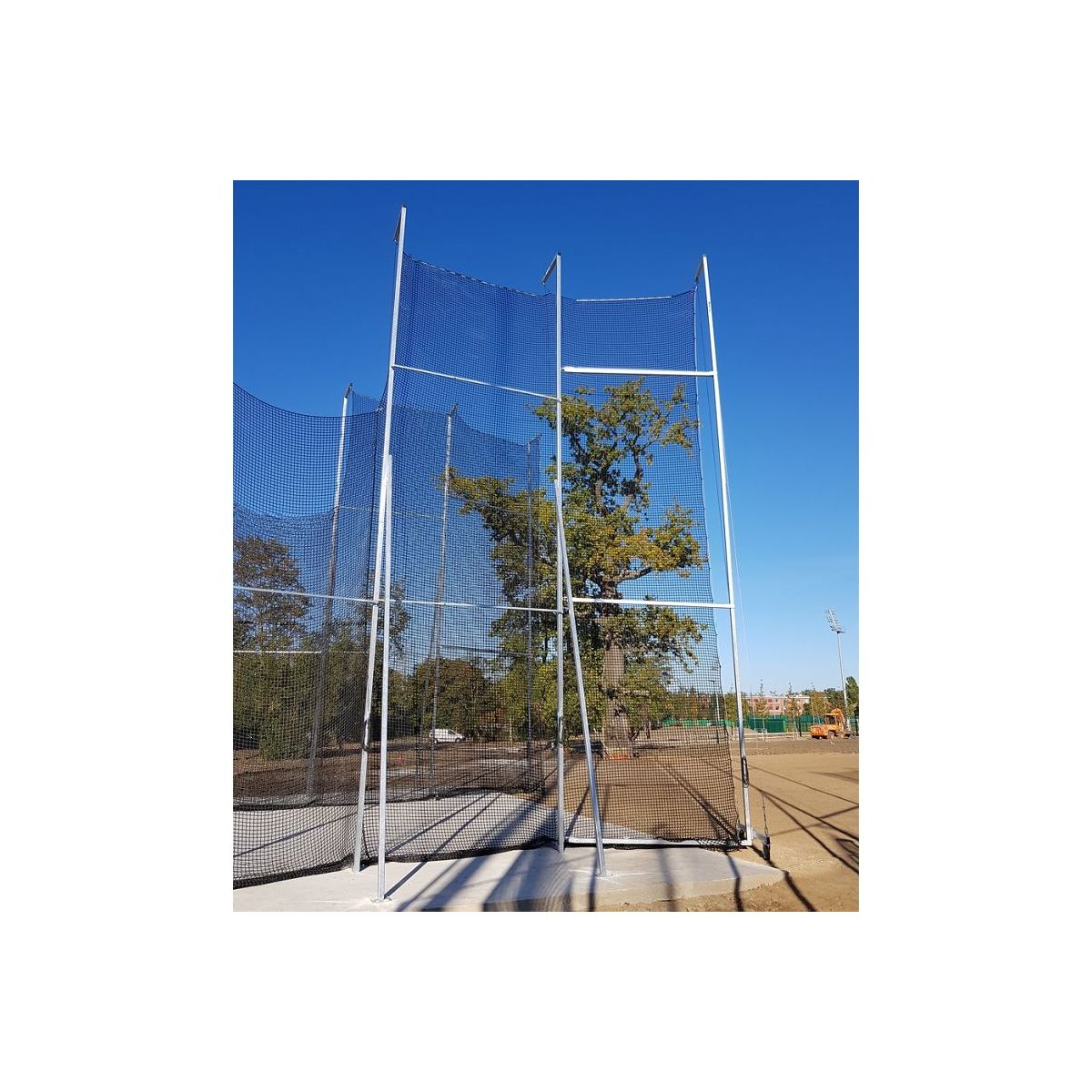

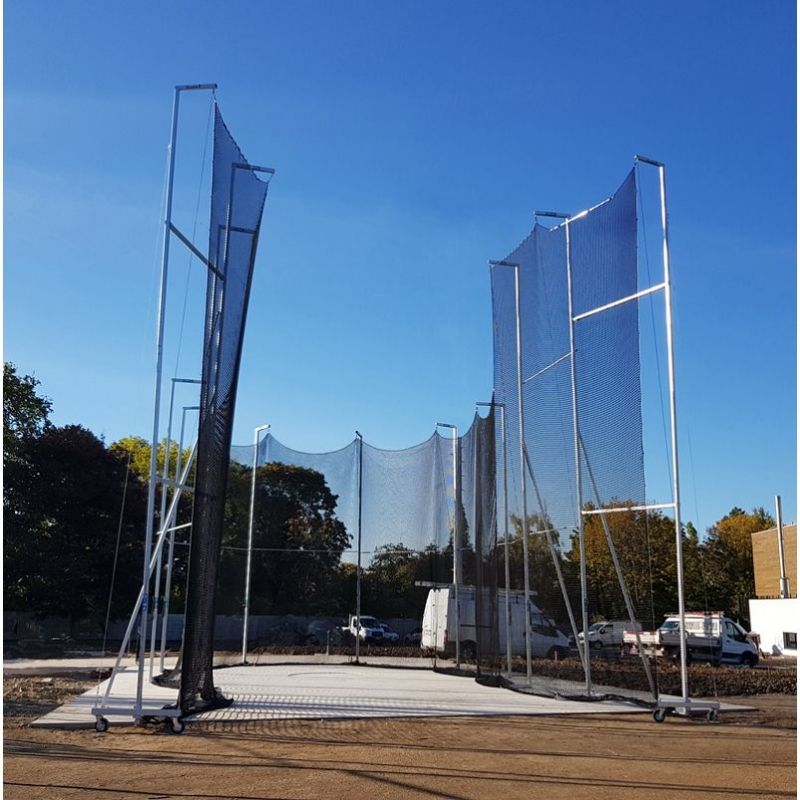

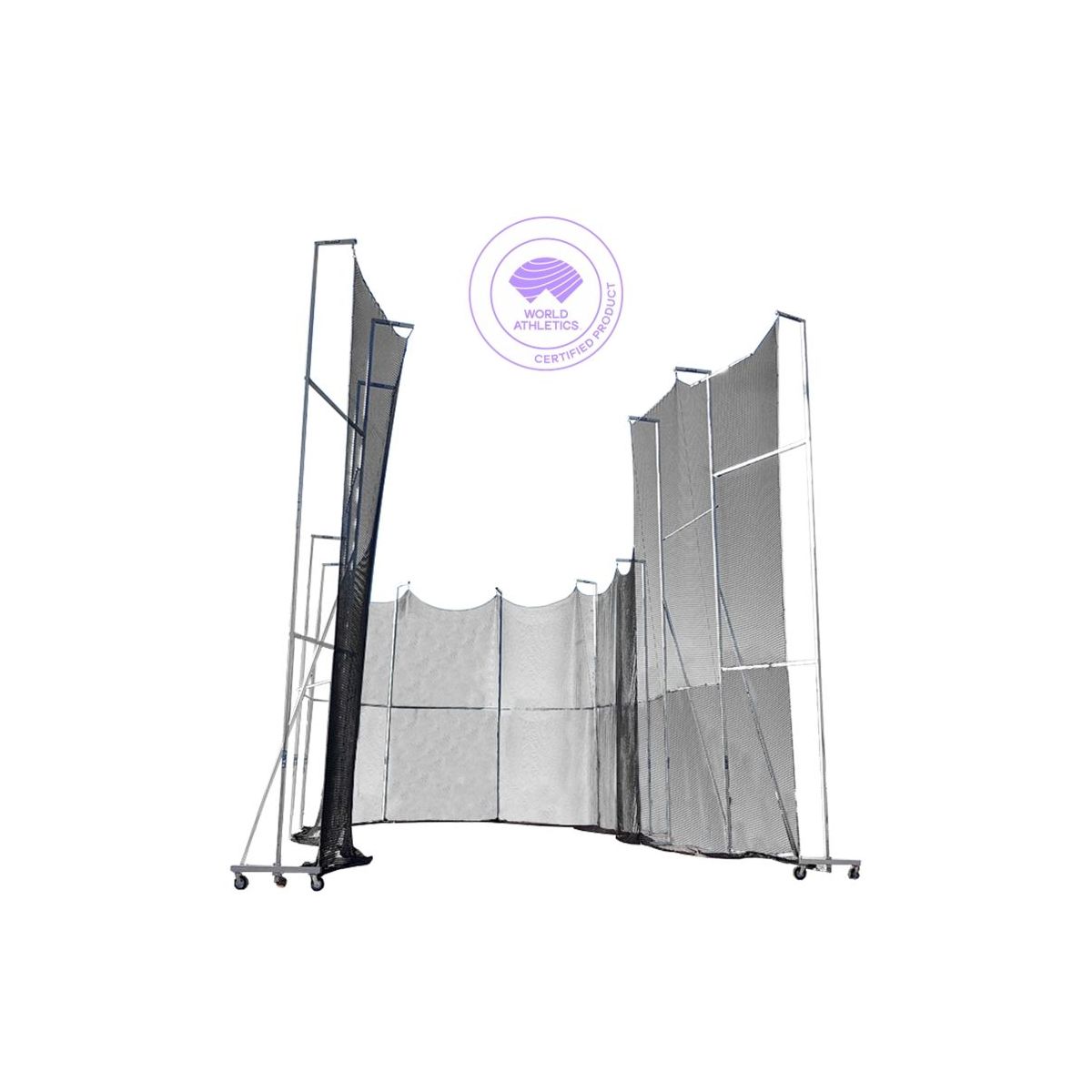

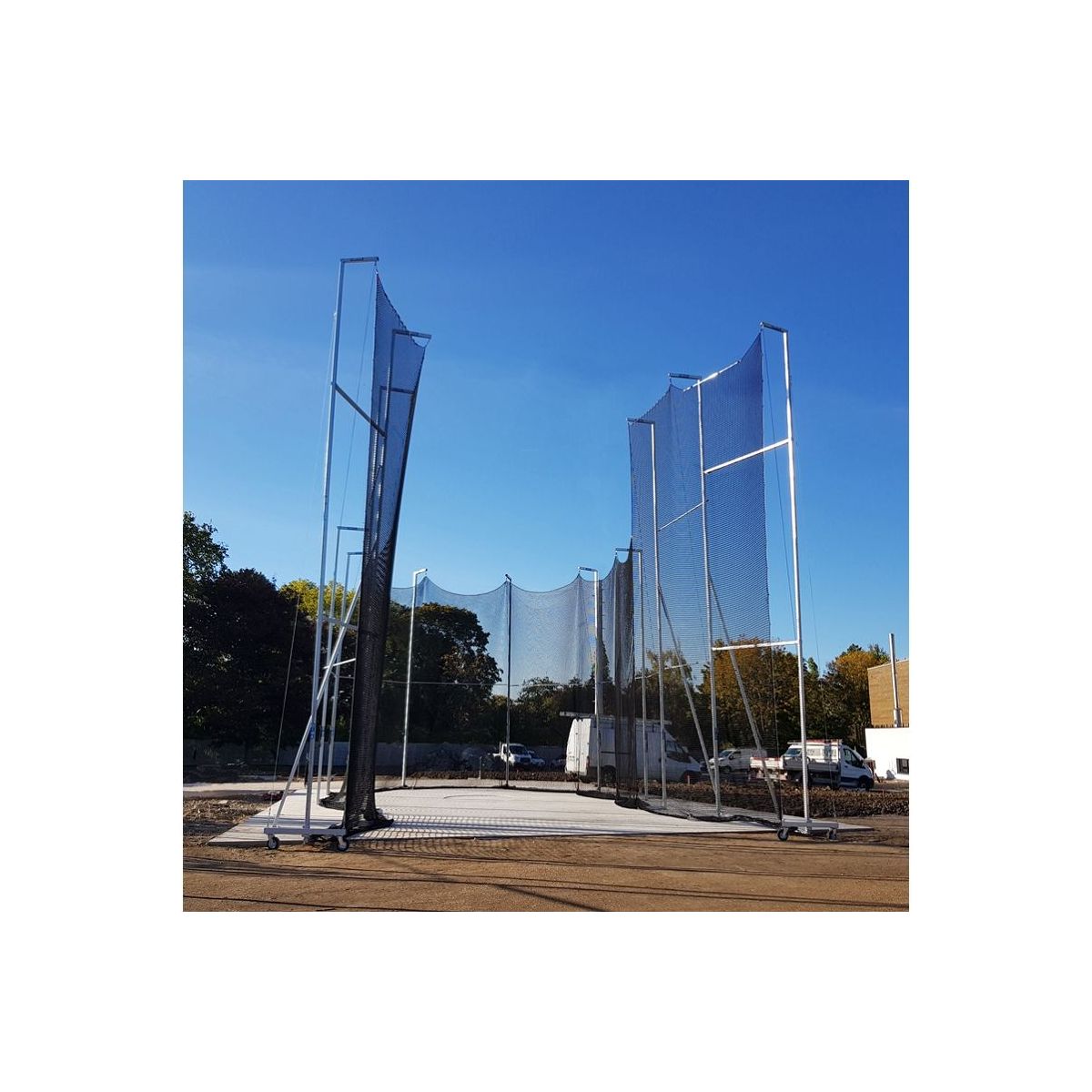

WORLD ATHLETICS GALVANIZED STEEL
HAMMER CAGE WITH GROUND SLEEVES

NEW DESIGN 2021 - WORLD ATHLETICS Approved and certified  n° E-99-0090

The major assets of this IAAF galvanized steel hammer cage with sleeves are its quality, durability and safety. Used in all major national and international championships.

All our frames are reinforced by an interior collar casing up to a height of 2.40m, thereby avoiding any breaking point.

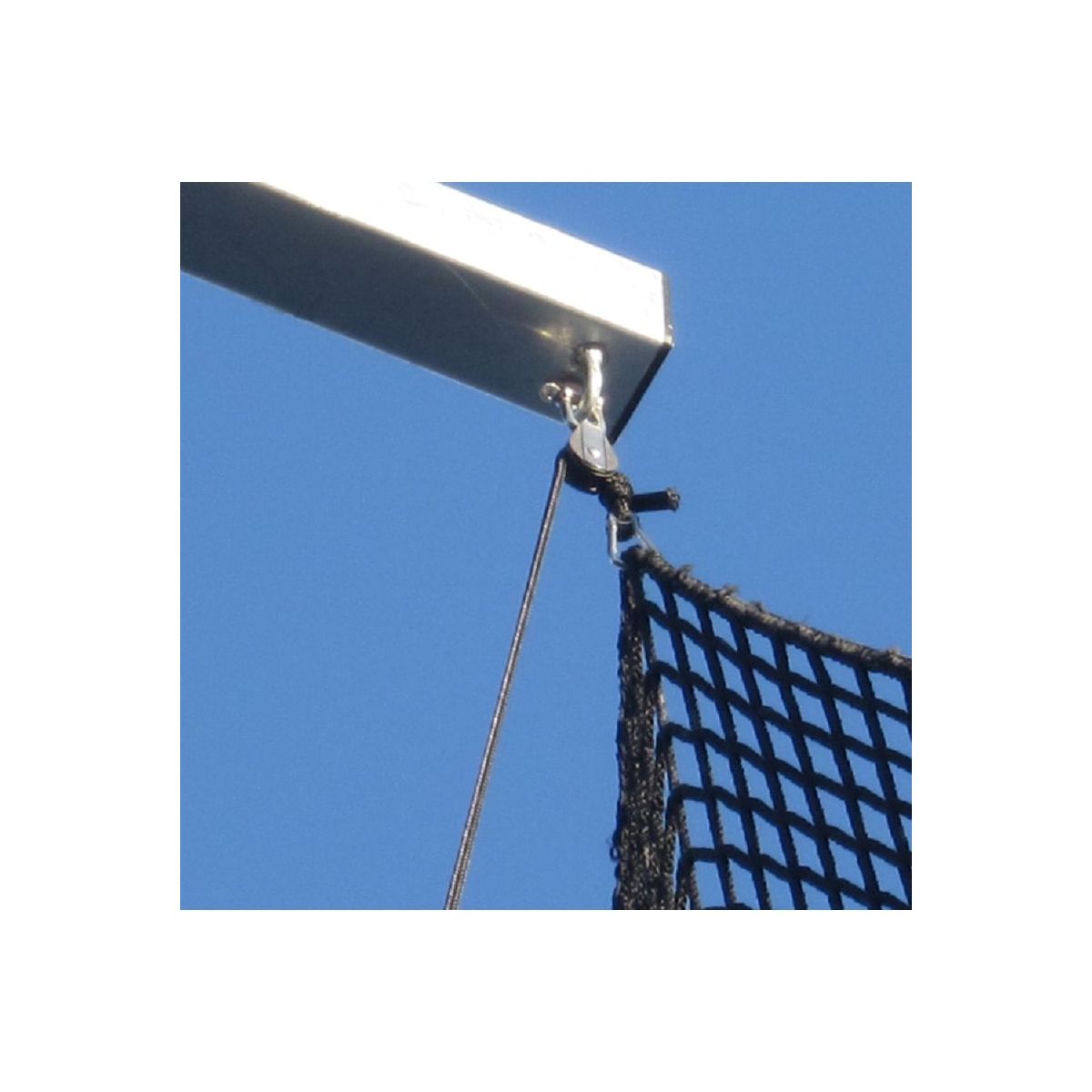

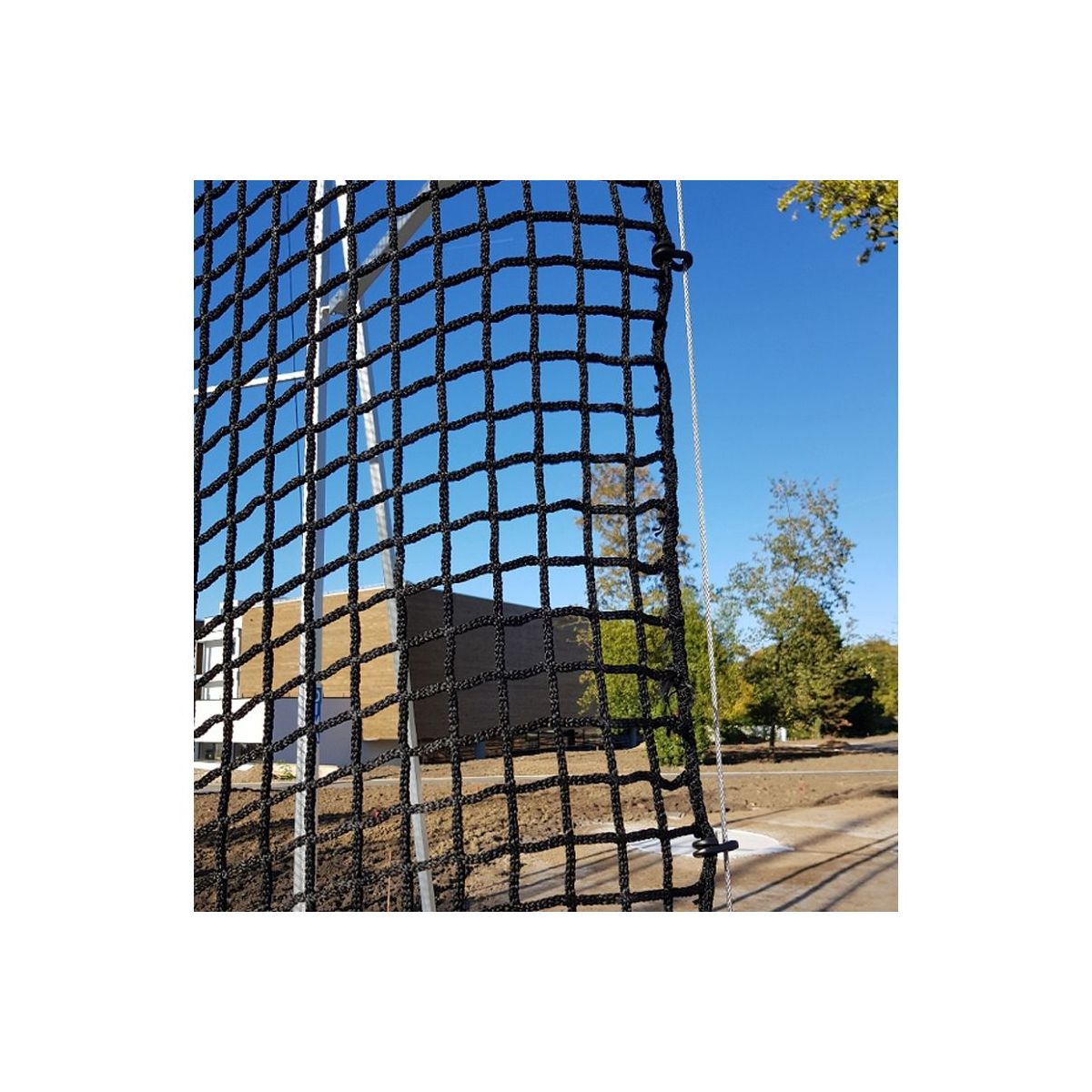

Nets (in rot-proof braided 5mm diameter polypropylene, 40x40mm mesch, high resistance, black, EN-1263-1 certified, delivered with test mesh) are mounted "floating" in order to avoid any "danger of ricochet or rebound towards the athlete and over the cage" according to IAAF rules. Easy raising and lowering of the net using nylon rollers. Delivered with sleeves and nets.

Made in France by Dima

Contents:

- 6 galvanized steel poles with 7.20 m height from the ground

- 4 galvanized steel poles with 10.20m height from the ground supported by reinforced legs with a carefully-designed angle for better comfort and more support of the higher sections of the cage.

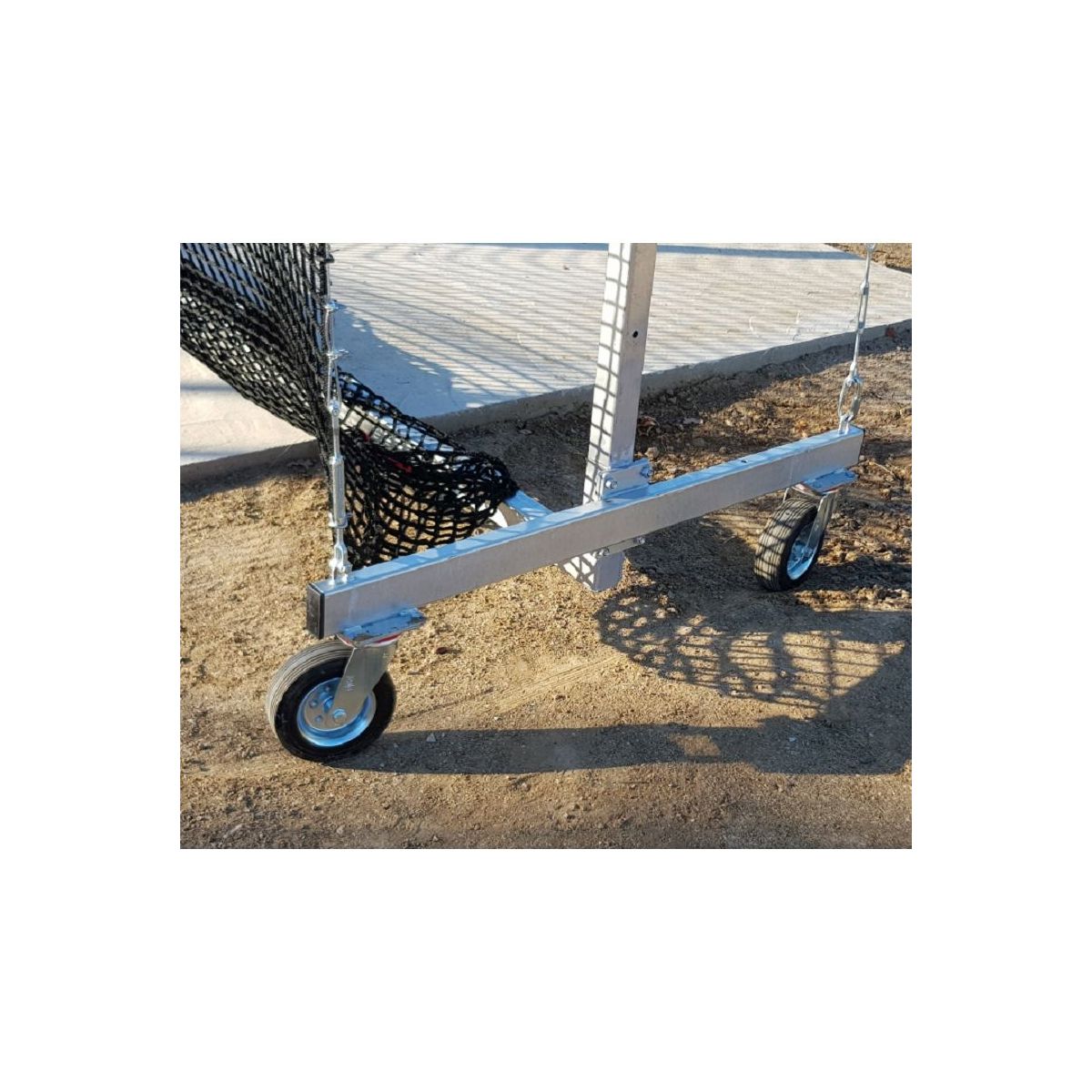

- 2 galvanized steel IAAF safety panels/doors of 10 m high, mounted on heavy and stable bases, each fitted with 2 solid rubber wheels (diam. 260). The door hinge pole is supported by reinforced legs for better stability.

- 11 galvanized steel adjustable crosspieces, to be positionned on the upper section of the poles to stabilize the whole structure.

- 10 galvanized steel net hooks (to be positionned at the base of each pole) for better care and hanging of the net.

- 6 x 70cm deep galvanized steel ground sleeves (for 7.70m rear poles)

- 4 x 100cm deep galvanized steel ground sleeves (for 11.20m front door poles)

- 1 main net of 24.50 x 7.30m

- 2 door nets of 10.30 x 5.80m. These 10 m high net on a width of 5.30 m protects the lane and panel: therefore no joint.

- 8 braided ropes of 15 m and 6 braided ropes of 20 m

Dima recommendation : it is imperative to lower the net after each use.

Descriptif complet >>

16740,00 € tax incl.13950 € HT
